Keylock

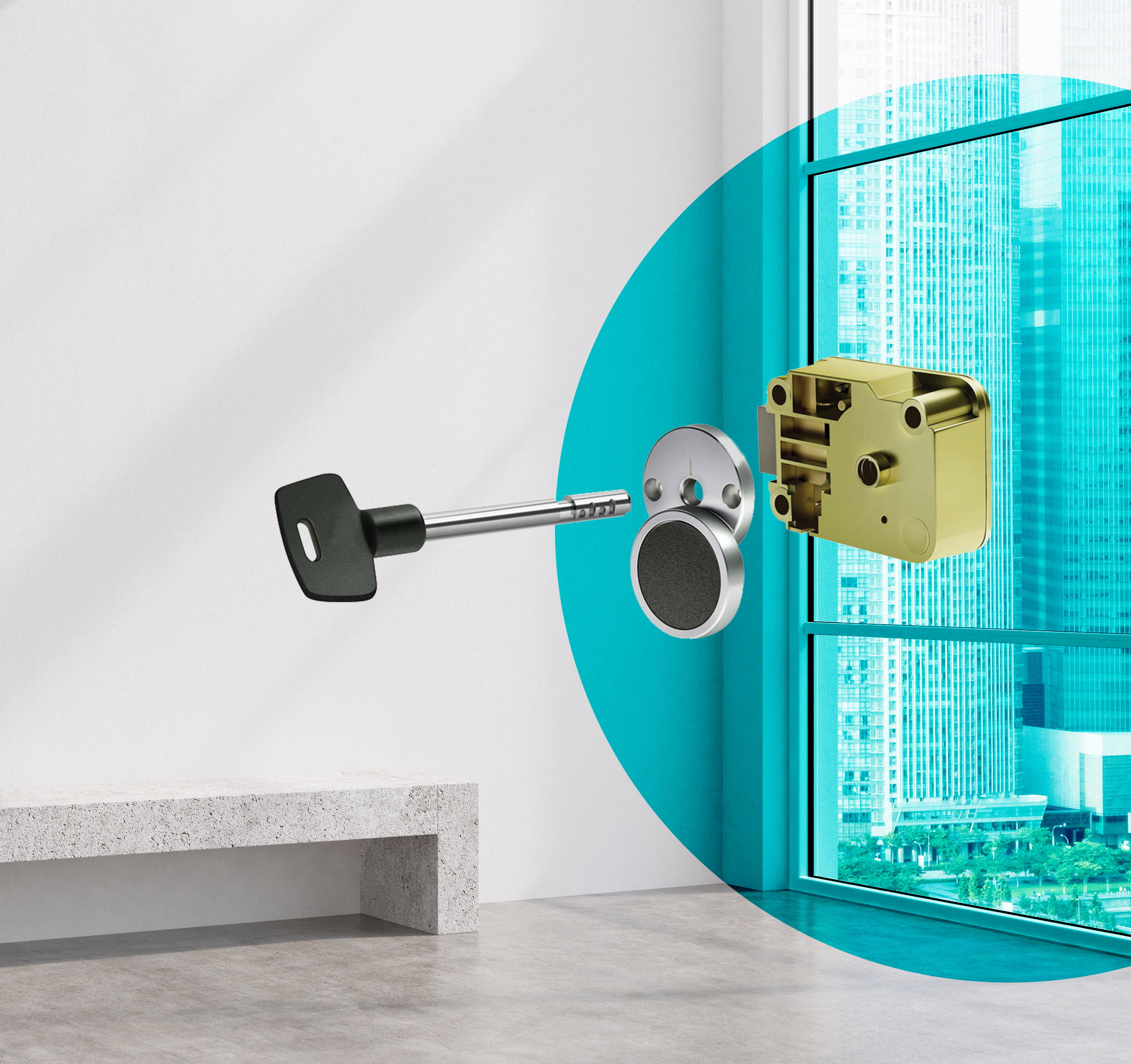

LA GARD offers a highly secure keylock that retrofits in place of a mechanical combination lock having the same footprint. Set the lock to any one of the approximately 160,000 theoretical key variations, by simply using the change activator at the back of the lock. The tubular key provides high security because it is extremely difficult to duplicate. It is a great locking solution to protect your security containers or to replace mechanical combination locks.

Features

  • Changeable lock
  • Key retained when in open position
  • 4 wheels, brass, delivery in works code, without keys (keys have to be ordered separately)
  • Integrated relocker: bolt blocking in case of manipulation of the lock cover
  • Bolt with 2 M4 threads, throw 8.7 mm
  • Weight approx. 550 g
  • Hardware pack: change activator steel, 85 mm; escutcheon (LA GARD 2219); 3 screws 1/4 - 20 x 3/8 PH (32 mm)
  • Die-cast lock case, bolt and drop lever, throw 8.7 mm, bolt with 2 M4 threads

APPROVALS/CERTIFICATES
UL Type 2, CNPP, a2p(E)

ALSO AVAILABLE ON REQUEST:
Extended bolt lock option
Detachable key handles and key tips, setup keys, triple key sets
Additional keys

OPTIONS
2270 Lock body
2226SC keyhole cover
2212-02 75mm key pair
2217-02 100mm key pair
2218-02 125mm key pair
2242-02 150mm key pair
