SmartLock Digital

Varos

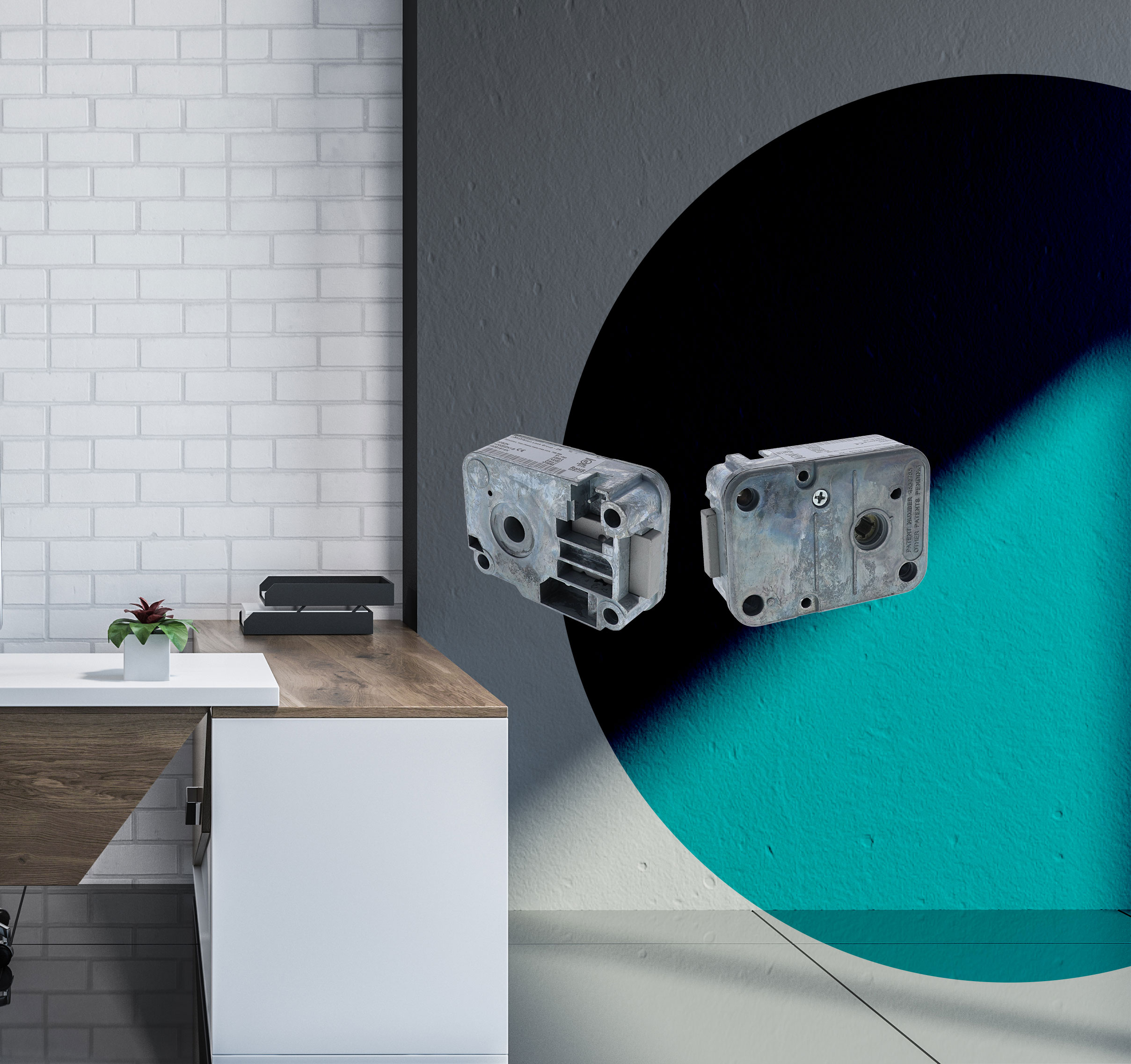

The Varos is a keylock that will retrofit in place of a mechanical combination lock. The Varos does not require tools to set the combination to a new key, because it has a unique key change lever on the inside of the lock. The key is slim line and inserts into the lock through the conventional mechanical dial hole that is already in the safe door. The lock meets international security standards and can be supplied with keys to suit even the thickest safe and vault doors.

Features

  • Changeable lock
  • 9 levers, electrolytic galvanised steel
  • Key retained when in open position
  • Die-cast lock case and bolt
  • Bolt with 2 M4 threads, throw 8,5 mm
  • Weight approx. 550 g
  • Compatible to mechanical and electronical spindle locks

APPROVALS/CERTIFICATES
EN 1300 B, ECB-S, VdS class 2, UL437, option: DNV

ADMISSIBLE MOUNTING POSITIONS
Right hand lock, opening clockwise

OPTIONS
Left hand lock – opening counter-clockwise
Mounting position lock – Horizontal (bolt right)
Delivery in change position

Accessories

  • Microswitch for bolt monitoring, retrofittable
  • Escutcheon plate set
  • Lock fixing screw: cheese head screw galvanised, DIN 84 – BSW ¼“ x 39 mm – 4.8, securing ring
  • Lock fixing screw: cheese head screw galvanised, DIN 84 – M 6 x 37 mm – 4.8, securing ring
  • Key guiding tube, brass, diameter 11 mm, length 1m
  • Leather pouch for detachable bit part
