CenconX

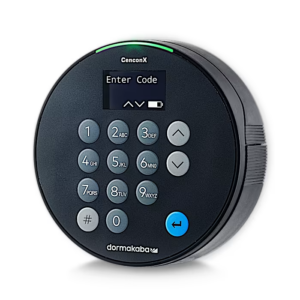

Keyless ATM Safe Lock
CenconX is a keyless safe lock system simplifies and modernizes your cash-in-transit (CIT) and ATM operations.
Developed by dormakaba, the global leader for One Time Code (OTC) Locks, CenconX uses encrypted mobile device technology to support ATM safe lock access seamlessly and securely through our Safe Lock Mobile App and centrally controlled management software. CenconX adheres to UL certification standards and is the most technologically advanced OTC lock in the market.
With CenconX, you can streamline cash replenishment operations with a lower lifetime cost while not compromising on industry-leading security.
Features
Manage Credentials
Manage credentials, OTC and Close Seals through dormakaba Safe Locks App
OTC Generation
No third-party app for OTC generation
Software Solution
On premise software solution with the Apexx Series Software
Route Sheets
Keyless and no written route sheets
Transfer Service
Commission lock or transfer service without tech meets
OTC Code
Cancel and reissue OTC code remotely
Audit Data
Auto capture audit data at every opening in near real time
Cencon Features
Key Cencon Features: Central Control, Credentials (app-driven), OTC, and true Close Seal
Security Enhancements
Optional Security enhancements (subsequent releases): Dual mode, Geofencing, Invisible Codes, and closed-door photo requirement
Specifications
Technical Details
Agency Approvals/Certification
• UL Type 1 high security electronic locks
Lock Specifications
• OLED display, tamper evident option, low profile or standard
• Lock types: Dead Bolt or Swing Bolt
• Bolt Switch
• Power: 2 x 9V or AC or line power
• Combination length: 9 for OTC, 6 for Static (+ID)
• Users: 50 Bank Mode + 50 OTC Mode
• Duress on mobile, on lock
• Warranty: 2 years from DOM
Functionalities
Lock
• One Time Code: visible or invisible option One Time Code: visible or invisible option
• Close Seal: 6-Digit BLE auto capture
• Audit: 6000 events 6000 events in lock, BLE capture every opening, Export via USB option, Viewable in display
• Hardware: Keyless for all operations Reset box, alarm box
• Wrong try penalty, time lock schedule, holiday schedule, time delay, OTC optional time out
• Lock options: serviceable or tamper evident seal, swing bolt, dead bolt, and an alarm box
Dual Credential
• Wrong try penalty, time lock schedule, holiday schedule*, time delay*, static users*, OTC optional time out*, geofencing*
(* Subsequent releases)
• Firmware Update via cable or BLE
Activation, Commissioning & User Management
• Activation via mobile app (BLE)
• Commissioning via Single site visit (BLE)
• Transfer service via software, single visit to lock by owner or new service provider
• Transfer ownership via software, single visit to lock by new owner
• Code control through software
Software & Mobile App Requirements
• Operating system: Windows 10/11
• SQL database 2019 or higher
• DNS server/DHCP
• Infrastructure: On Premise
• Integration: API / SKD
• Mobile App: IOS or Android
